Lamella Clarifier Guide Efficient Solid-Liquid Separation with Tube-Settler Media

Lamella clarifiers are high-efficiency sedimentation devices widely used in water and wastewater treatment. By incorporating a series of inclined plates or tube modules, these clarifiers significantly increase the effective settling area while reducing hydraulic retention time. This makes them ideal for applications where space is limited, flows are high, and high solids removal efficiency is required.

A modern solution is the PVC tube-settler lamella module, consisting of hexagonal PVC tubes formed via hot drawing and welding. These modules are modular, durable, and offer excellent chemical resistance, making them suitable for both new installations and retrofit projects.

How Lamella Clarifiers Work

Influent Distribution: Wastewater enters the bottom of the clarifier, typically through a baffle or manifold that ensures uniform flow into the inclined pack.

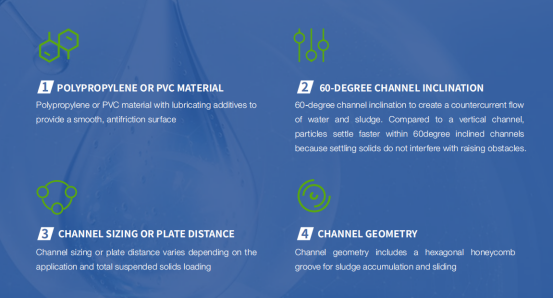

Settling in Tube-Settler Modules: The inclined tubes (usually at 45°–60°) provide multiple narrow channels, allowing suspended solids to settle quickly. Because the particles only need to travel a short vertical distance to reach a surface, settling occurs much faster than in conventional clarifiers.

Sludge Collection: Settled solids slide down the inclined tubes into a hopper or sump at the bottom of the clarifier, ready for mechanical or manual removal.

Effluent Exit: Clarified water rises between the tube channels and exits over a weir at the top.

Design Example: Tube diameters (φ) range from 25 mm to 80 mm, with corresponding specific surface areas:

φ25: ~139 m²/m³

φ35: ~109 m²/m³

φ50: ~87 m²/m³

φ80: ~50 m²/m³

These high surface areas allow for high flow rates while maintaining excellent solids capture.

Advantages of Tube-Settler Lamella Clarifiers

Compact Footprint: The inclined tube geometry increases settling area by 3–5× compared to traditional rectangular or circular tanks, reducing tank size and civil costs.

High Surface Overflow Rate (SOR): Lamella clarifiers can operate at 10–25 m/h SOR, compared to 1–3 m/h in conventional clarifiers, handling larger flows without increasing tank size.

Short Hydraulic Retention Time: Typical HRT is 1–3 hours, yet solids removal efficiency can reach 90–95%.

Flexible Retrofit Potential: Existing tanks can be upgraded by inserting tube-settler modules, improving capacity without full reconstruction.

Durable and Chemical-Resistant: PVC/PP modules resist corrosion, fouling, and chemical attack, suitable for municipal, industrial, or cooling tower water.

Modular Design: Modules can be installed in phases or replaced individually, reducing downtime and maintenance costs.

Design and Operational Considerations

Tube Angle and Spacing: 45°–60° angles are common. Narrow spacing improves settling but may increase clogging risk; wider spacing reduces capacity.

Flow Uniformity: Uneven flow can reduce efficiency and resuspend settled solids; distribution baffles are essential.

Sludge Management: Proper hopper design and withdrawal mechanism are critical; accumulated sludge must be removed regularly.

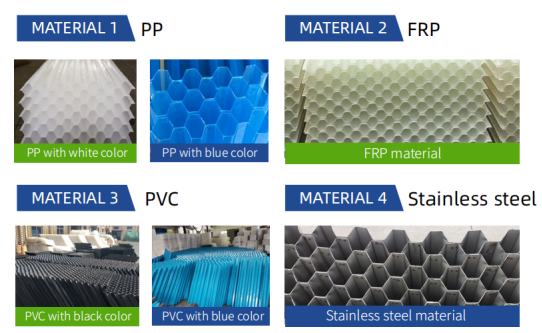

Material Selection: PVC is standard for chemical resistance, light weight, and ease of installation; PP or stainless steel may be used for high-temperature or highly abrasive water.

Pre-treatment: Screening, grit removal, and coagulation/flocculation improve performance by increasing particle size and density.

Hydraulic Loading Limits: Tube-settler modules allow higher surface overflow rates, but exceeding design flow or SOR can reduce efficiency.

Maintenance and Operational Tips

Inspect modules periodically for fouling, biofilm growth, or chemical degradation.

Maintain uniform influent distribution to prevent short-circuiting.

Clean or replace individual tube modules as needed; modular design simplifies maintenance.

Monitor sludge level in the hopper to avoid carry-over and re-entrainment.

Avoid introducing large debris, oils, or fine colloids without pre-treatment, as these can impair performance.

Typical Applications

Municipal Water Treatment: Primary and secondary clarification, stormwater sedimentation.

Industrial Wastewater: Food and beverage, chemical, mining, or metal finishing effluents.

Cooling Water Treatment: Cooling tower blowdown or recirculating water clarification.

Retrofit Projects: Upgrading existing conventional clarifiers for higher capacity without major construction.

Performance Data Highlights

Selection Guide

Space-Limited Sites: Tube-settler lamella clarifiers are ideal due to compact footprint.

High Solids or Fouling Water: Use inclined PVC/PP tubes for better sediment capture and fouling resistance.

Retrofitting Existing Tanks: Modular design allows upgrade without full reconstruction.

Flow Rate Requirements: High SOR allows efficient operation at elevated flows.

Maintenance Considerations: Modular, accessible tube packs simplify cleaning and replacement.

Conclusion

Lamella clarifiers equipped with PVC tube-settler media represent a modern, high-performance solution for sedimentation in water and wastewater systems. Their compact design, modular construction, and high surface area allow for efficient solids removal, retrofit flexibility, and reduced hydraulic retention times. By carefully selecting tube size, angle, and material, and ensuring proper flow distribution and sludge management, these systems deliver excellent long-term performance across municipal, industrial, and cooling water applications.
