Crossflow Fill vs. Counterflow Fill – Professional Cooling Tower Fill Selection Guide

The fill media in a cooling tower is the key component that facilitates heat transfer by maximizing contact between water and air. Two main flow configurations are used in cooling towers: crossflow and counterflow. Choosing the correct fill type is critical for optimal thermal performance, energy efficiency, and long-term operational reliability.

Crossflow towers: Air flows horizontally through a vertical water film.

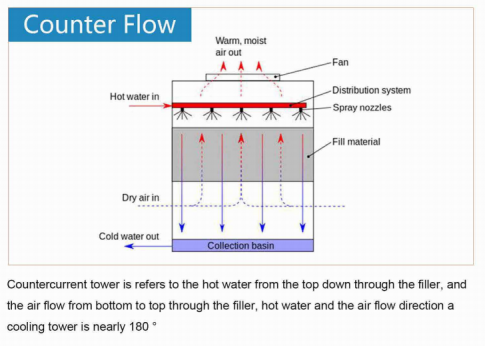

Counterflow towers: Air moves vertically upward against the downward flow of water.

Technical Comparison

Flow Geometry and Heat Exchange

Crossflow: Water flows downward over fill sheets while air passes horizontally. Contact time is moderate, resulting in slightly lower thermal efficiency. Water distribution may be less uniform, especially at partial load.

Counterflow: Air flows opposite to the water, enabling longer air–water contact time and more uniform water distribution, achieving higher thermal efficiency. Studies indicate counterflow towers can achieve up to 5–10% higher thermal performance under similar conditions.

Space and Layout

Crossflow towers are wider and shorter, suitable where vertical height is restricted.

Counterflow towers are taller and narrower, occupying less ground area, advantageous in sites with limited footprint.

Data shows that for cooling capacities below ~750 RT (≈3,300 kW), counterflow towers usually require less floor space, whereas above this capacity, crossflow towers may become more efficient in terms of footprint distribution.

Water Quality and Fouling

Crossflow fill is easier to access and maintain, suitable for clean or moderately fouling water.

Counterflow fill, with vertical flow channels and uniform water distribution, performs better under high solids, scaling, or biologically active water. This geometry reduces sediment accumulation and biofilm formation.

Maintenance and Operational Considerations

Crossflow systems typically use gravity-fed water distribution, simplifying maintenance and inspection.

Counterflow systems usually use pressurized spray distribution, requiring higher pump head and more careful maintenance planning.

Crossflow towers are easier to service due to side access; counterflow towers require top access for fill and spray headers, making inspection more complex.

Crossflow towers maintain reasonable water distribution even at low flow rates (~30% of design flow), providing better turndown flexibility.

Energy, Cost, and Lifecycle Considerations

Crossflow towers generally have lower initial installation costs but may require higher airflow and fan power to achieve the same cooling load.

Counterflow towers have higher upfront costs due to structural and distribution requirements but can reduce fan energy consumption by 5–10%, depending on system load and airflow optimization.

Application and Operational Considerations

Crossflow Fill:

Film-type sheets enable gravity-fed water distribution.

Performs well under moderate water quality, and maintenance access is simple.

Maintains adequate water distribution at low flow (~30% design flow).

Counterflow Fill:

Vertical or angled flutes maximize surface area and ensure uniform water distribution.

Ideal for high-capacity towers, fouling-prone water, or when maximum thermal efficiency is required.

Supports reduced fan energy and long-term operational savings despite higher installation complexity.

Selection and Recommendation

When selecting between crossflow and counterflow fill, consider the following:

Tower Configuration

Match the fill to airflow and water flow geometry: horizontal air / vertical water (crossflow) vs vertical air against downward water (counterflow).

Water Quality and Fouling Risk

High solids, scaling, or biologically active water → Counterflow.

Clean or moderately fouling water → Crossflow sufficient.

Space and Layout

Limited vertical height → Crossflow.

Limited ground footprint but available height → Counterflow.

Performance and Efficiency

Maximum thermal efficiency / energy savings → Counterflow (up to 5–10% more efficient).

Moderate efficiency acceptable → Crossflow.

Maintenance and Turndown

Ease of access and frequent inspection → Crossflow.

Fouling-resistant, less frequent cleaning → Counterflow.

Crossflow allows operation at ~30% design flow, supporting turndown flexibility.

Lifecycle Cost

Lower upfront cost and simple maintenance → Crossflow.

Higher efficiency, energy savings, and long-term operational reliability → Counterflow.

Summary Recommendation:

Crossflow Fill: Best for moderate water quality, height-limited sites, simpler maintenance, lower initial cost.

Counterflow Fill: Best for high-capacity systems, limited footprint, fouling-prone water, and when long-term efficiency and energy savings are priorities.
