Difference Between Vinyl Sheet Piles and Steel Sheet Piles

Sheet piles are widely used in civil engineering projects such as retaining walls, shoreline protection, flood control structures, and excavation support systems. Two common types of sheet piles are vinyl sheet piles and steel sheet piles. Each material offers different structural characteristics, cost considerations, and installation requirements.

Understanding the differences between these two systems helps engineers and contractors select the appropriate solution for specific environmental and structural conditions.

What Are Vinyl Sheet Piles

Vinyl sheet piles are manufactured from PVC (polyvinyl chloride). They are lightweight structural panels designed to form retaining or barrier walls in marine and environmental projects.

Material Composition and Properties

Compared with steel, vinyl sheet piles provide excellent resistance to corrosion and chemical exposure. PVC materials do not rust and are not affected by saltwater, moisture, or biological organisms.

Although vinyl sheet piles have lower mechanical strength than steel, they deliver reliable performance in many shoreline and water control applications.

Where Vinyl Sheet Piles Are Commonly Used

Vinyl sheet piles are frequently used in:

seawalls

shoreline stabilization

flood protection structures

canal and riverbank reinforcement

environmental containment projects

These projects benefit from the corrosion resistance and durability of PVC materials.

What Are Steel Sheet Piles

Steel sheet piles are structural sections manufactured from high-strength steel. They interlock with each other to form continuous walls that resist soil and water pressure.

Material Strength and Structural Performance

Steel sheet piles provide high tensile strength and stiffness, allowing them to withstand heavy loads and deep excavation pressures. Because of their structural capacity, they are commonly used in demanding engineering environments where strong retaining structures are required.

Typical Engineering Applications

Steel sheet piles are widely used in projects such as:

bridge foundations

deep excavations

port and harbor structures

cofferdams

large infrastructure construction

These applications require high structural reliability and resistance to significant soil pressure.

Vinyl Sheet Piles vs Steel Sheet Piles

Corrosion Resistance: Vinyl sheet piles naturally resist corrosion, making them highly effective in saltwater and chemically aggressive environments. PVC materials maintain their structural integrity even after long-term exposure to moisture and marine conditions. Steel structures may require protective coatings or cathodic protection systems when used in marine environments. Without protection, corrosion can reduce the service life of steel sheet piles.

Strength and Structural Capacity: Vinyl sheet piles are designed for moderate loads and are widely used in shoreline and environmental projects where extreme structural capacity is not required. Steel sheet piles offer significantly higher strength and stiffness, making them suitable for heavy loads and deep retaining structures.

Cost Comparison: Vinyl sheet piles are lightweight and easier to transport. Installation often requires smaller equipment, which can reduce transportation and construction costs. Steel sheet piles generally involve higher costs due to material weight, transportation requirements, and the need for heavy installation equipment.

Service Life and Maintenance: Vinyl sheet piles typically require minimal maintenance because PVC materials do not rust or deteriorate easily. Steel sheet piles may require periodic inspection and maintenance to manage corrosion over time.

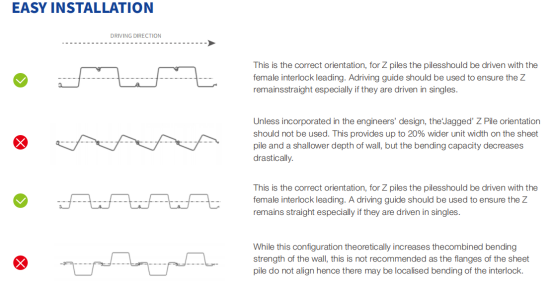

Installation Differences

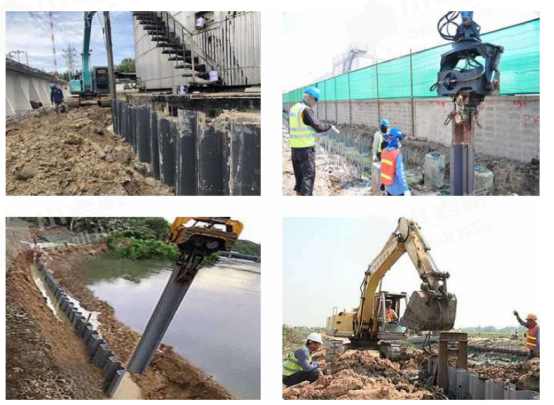

Vinyl Sheet Pile Installation Process: Vinyl sheet piles are significantly lighter and can often be installed with smaller vibratory hammers or excavators. Their lightweight structure simplifies transportation and site handling.

Role of Mandrel in Vinyl Sheet Pile Installation: A mandrel is often used during vinyl sheet pile installation to support the pile while it is driven into the ground. The mandrel helps maintain alignment, prevents deformation, and improves installation accuracy.

Steel Sheet Pile Installation Process: Steel sheet piles are usually installed using heavy construction equipment such as cranes, vibratory hammers, or hydraulic impact hammers. These tools drive the steel sections into the ground while maintaining interlock alignment. Due to the weight and structural rigidity of steel piles, installation requires specialized machinery and experienced operators.

How to Choose the Right Sheet Pile

Environmental Conditions: In marine environments or locations with high corrosion risk, vinyl sheet piles provide long-term durability and lower maintenance requirements.

Budget Considerations: Vinyl sheet piles may offer lower total project costs due to easier transportation, simpler installation, and minimal maintenance requirements.

Project Load Requirements: Projects involving heavy loads or deep excavations may require steel sheet piles due to their structural strength.
