BLADE DRIFT ELIMINATORS

Feb. 28, 2020


BLADE DRIFT ELIMINATORS

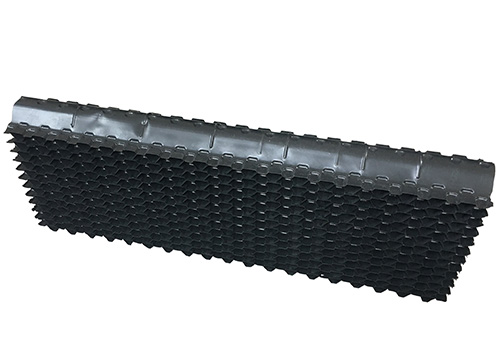

Blade Drift Eliminator use a tightly-spaced series of sinusoidal-shaped, PVC blades that force the leaving air to make 3 distinct changes of direction, resulting in maximum drift droplet removal. But this performance does not come at the expense of fan energy, as the engineered flow through the blade drift eliminator achieves very low pressure drop.

BLADE DRIFT ELIMINATORS


FEATURES AND BENEFITS


· Easy to assemble on-site,

· Drift eliminator “nest” with the modules next to them (below left) to provide “seamless” drift removal. this nesting design eliminates gaps between packs that can allow drift droplets to bypass the drift eliminators (below right)

· The blade drift eliminator features an open drainage design for crossflow induced draft applications


APPLICATIONS


The blade drift eliminator is designed for applications requiring very low drift levels in counterflow or crossflow Cooling Towers, Turbine Intake Coolers, Scrubbers, and high humidity cooling systems.
