How to make lamella tube settler module into 60 degree slope

How to make lamella tube settler module into 60 degree slope?

Tube settler also named as lamella tube or lamella calrifier, it is widely applied in water purification or sedimentation tanks.

Usually tube settler sheets need to be assembled into modules when applied in the sedimentation tank or clarifier tanks, while in order to make it more efficient in the process of tiny floc particles settling down on the wall side of tube settler channels, certain slope is needed, commonly the slope is 60 degree.

How to make a 60 degree slope?

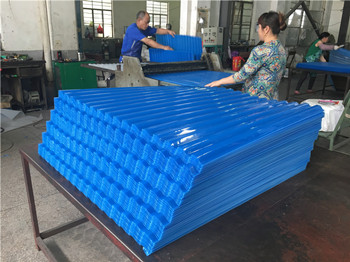

1. Producing the tube settler sheet

2. Tube settler was cut into needed size

3/4Tube settler edges was cut into 60°angle

Then you just need to assemble the sheets.

After asssembled by welding iron, the module will have a 60 degree slope. Of cause, if you need a 50 degree slope, we can also do that.
