Does Height Effect the Structuer of Bolted Water Tank?

Sep. 03, 2020

When you choose water storage tanks, you might think about Water Tank sizes, like length, width and height. Knoning the following tips can help you don’t panic when doing insatllation.

1. Measure the site area and ensure water tank each size fit the site area.

2. Ensure enough installation distance from the wall or any obstacles, for example, when your site area(the area for bulting water tank) is 10m length, 5m width, then your water tank should be no larger than 9.5m length and 4.5m height.

3. As for the water tank height, there are limitations for different materials of water tank:

--FRP water tank: no higher than 5m

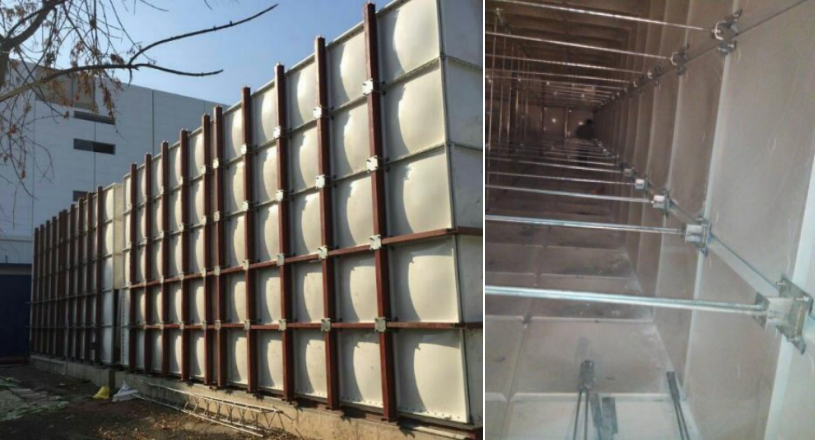

When height up to 3m or above, for inside structure, the bottom lacing bar become two pcs, for outside structure, there would be strenghten parts:

Water Tank

--Galvanized steel water tank no highter than 6m

--Stainless steel water tank no higher than 5m

For galvanized steel type and stainless steel type outside structure has no change than those water tank under 3m, but water tank panel will be thicker and inside lacing bars arrangement is same with FRP water tank.
