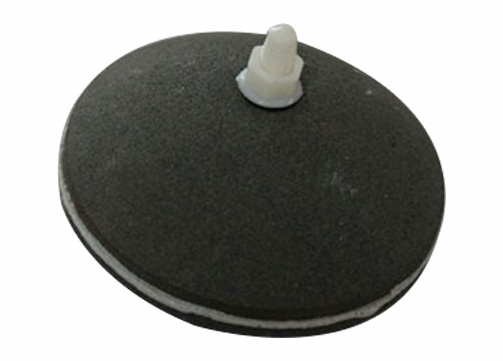

Ceramic fine bubble disc air diffuser
Ceramic fine bubble disc air diffuser is a high efficiency energy-saving air diffusion device with brown fused aluminum oxide being the main raw material. The process of compression molding and high temperature sintering which makes it of greater hardness and stable chemical properties.
Main Feature
1.Simple structure, ease of installation
2.Tight sealing without air leakage
3.Maintenance-free design, long service life
4.Corrosion resistance and anti-clogging
5.High oxygen transfer efficiency
Model | LZ-178 | LZ-125 | ZC-250 | LZ-300 |
Operating air flow range(m³/h.piece) | 1.2-3 | 1.5-2.5 | 2-3 | 2.5-4 |
Designed air flow(m³/h.piece) | 1.5 | 1.8 | 2.5 | 3 |
Effective surface area | 0.3-0.65 | 0.3-0.65 | 0.4-0.8 | 0.5-1.0 |
standard oxygen transfer efficiency(%) | 20-31.5 | 20-31.5 | 20-31.5 | 20-31.5 |
standard oxygen transfer rate(kg.O2/h.piece) | 0.13-0.38 | 0.16-0.4 | 0.21-0.4 | 0.21-0.53 |
Compressive strength | 120kgs/cm² | |||
Bending strength | 120kgs/cm² | |||
Acid alkali resistance | weight loss 4-8%,not affected by organic solvents |
